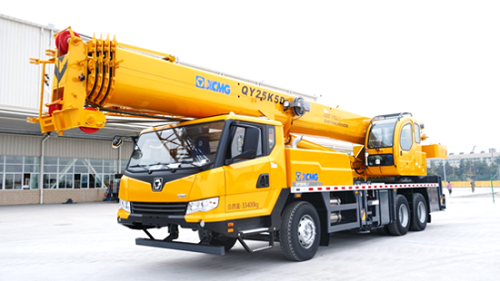

Truck crane QY25K5D

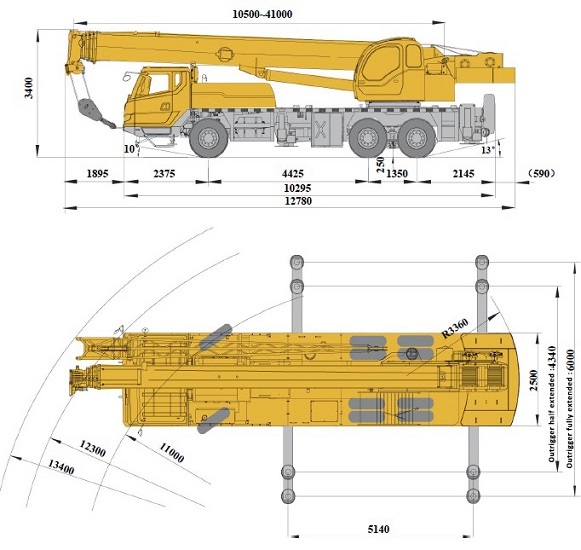

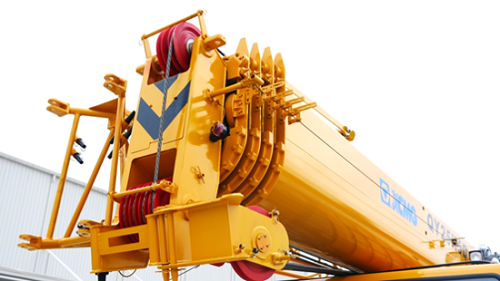

5-section, U-shape cross section, welding structure. Boom length:10.5m～41m.

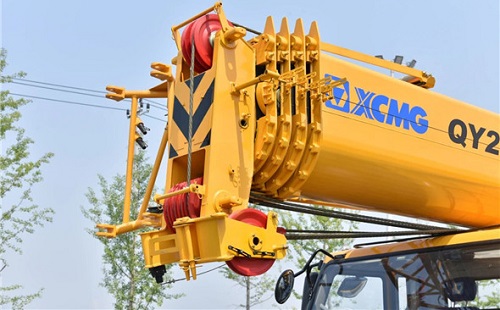

Single pulley, fitted on boom head, used for single line operation.Its lifting performance is the same as that for boom, but could not exceed 2.8t.

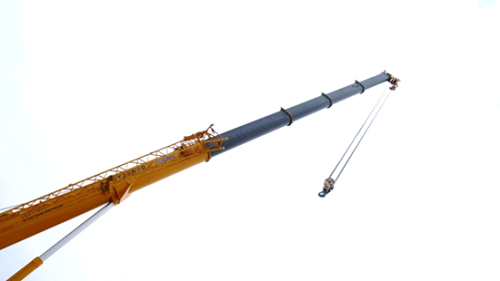

1-section, Lattice jib, welded structure. Three offset angles of 0°, 15° and 30°. Fixed jib length: 8.3m
Product description：
INQUIRY

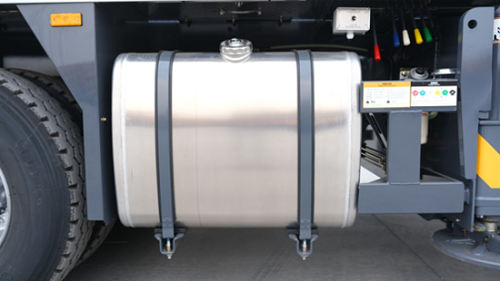

Engine: MC07H.32-50, in-line six-cylinder watercooled EFI diesel engine, manufactured by CNHTC, rated power 235kW/2200rpm, max. torque 1250Nm / 1200-1600rpm, the national V emission standards. SC9DF300.1Q5, in-line six-cylinder watercooled EFI diesel engine, manufactured by Shanghai Diesel Engine Co.,Ltd., rated power 221kW /2200rpm, max. torque 1250Nm / 1400rpm, the n a t i o n a l V emission standards. Fuel tank capacity：240L

Gearbox: FAST manually mechanical control，8-speed available, synchronizer is equipped.

Alxes: High strength axle with reliable performance from Hande. 2nd axle and 3rdaxle for driving.
Tires: 10 tires and 1 spare tire, front axle is equipped with single tire, middle axle and rear axle are equipped with double tire. Tire specifications:11.00R20 or 11.00-20.

Outrigger: 4 outriggers, H-shaped arrangement, lateral and vertical outrigger controlled by the hydraulic control. Control levers are located on both sides of the chassis, with a luminous level gauge equipped, with the fifth jack, and the vertical outrigger has two-way hydraulic lock. Outrigger float dimension: φ400mm Max. outrigger reaction force: 310KN
